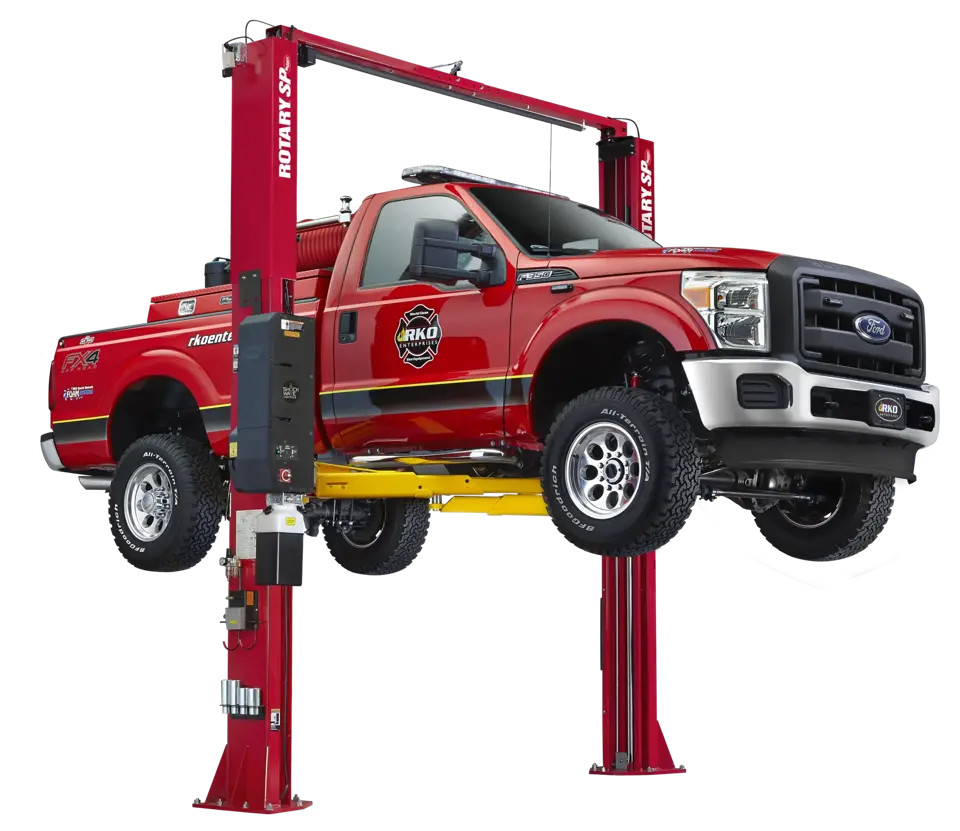

Rotary SPO12 - Symmetric Lift

Contact us at -877-683-4516

Product Description



SPO12N7T7

12,000 lbs.

The Rotary SPO12 sets the standard for reliability and quality in 12,000 lb. lifts.



  • Standard front & rear three-stage arms
  • Truck adapters with stackable inserts for added reach
  • Available in alternate height configurations
  • ALI Gold Certified (SPO12X)



More dealers and independent repair shops choose the Rotary SPO12 because of its reputation for quality and reliability. With a standard feature set that can't be beat, it's easy to see why. Every SPO12 comes standard with our exclusive single piece "double S" column, front and rear three stage arms, stackable thread-up truck adapters and Rotary piece of mind.  Customizable features include low ceiling or extended height settings. Or choose to supercharge your lift with Shockwave.



Specification SPO12
Capacity 12,000 lbs.
Rise 80 1/4"
Overall Height 13' 8"
Required Ceiling Height 14'
Overall Width 11' 5 5/8"
Drive-Thru Width 8' 6 3/8"
Front Arm Min/Max 27 1/2"-59"
Rear Arm Min/Max 27 1/2"-59"
Min. Adapter Height 4 3/4"
Motor 2 HP
Voltage 208v-230v
Time of Full Rise/Decent 60 secs./40 secs.
Min. Bay Size 12'x26'
