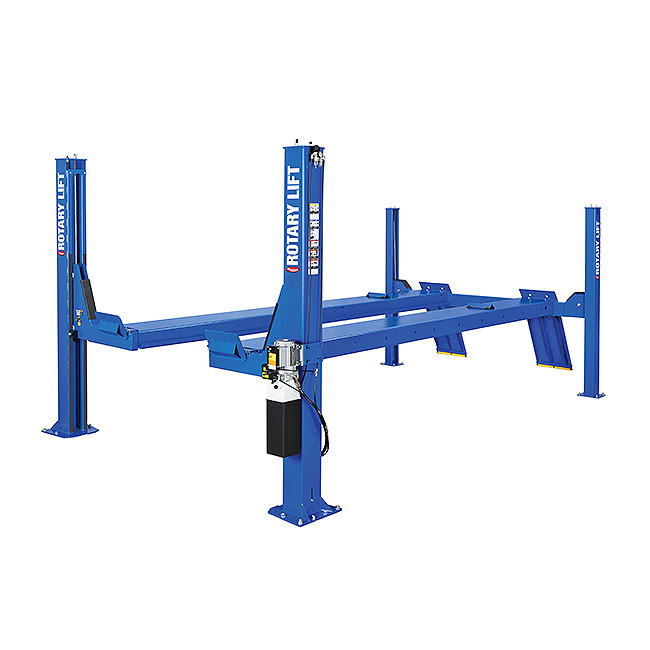

Rotary SMO14EL2 Four Post Open Front Lift
Contact us at -877-683-4516
Product Description
SMO14-14,000 Four Post Lift
(special order)
- Open-end design
- Cylinder located under the runway
- Dual function Sentinel Lock™ System
- Air Filter/Regulator/Lubricator
- Adjustable latch bars
- Single piece non-welded runway with tracks for rolling jacks
- ALI Gold Certified (SMO14-X)
| Specification - SMO14 | SMO14-L | SMO14-EL |
| Max. Wheelbase | 182" | 215" |
| Rise | 78 3/4" | 78 3/4" |
| Length Overall | 21' 1" | 23' 10" |
| Width Overall | 11' 8 1/2" | 11' 8 1/2" |
| Inside of Columns | 116 1/4" | 116 1/4" |
| Between Front and Rear Columns | 194 3/4" | 227 3/4" |
| Height of Columns | 9' 1 1/16" | 9' 1 1/16" |
| Width of Runways | 20" | 20" |
| Height of Runways | 7" | 7" |
| Width Between Runways | 43" | 43" |
| Lifting Capacity | 14,000 lbs. | 14,000 lbs. |
| Motor | 2 HP | 2 HP |
| Voltage Single Phase | 208v-230v | 208v-230v |
| Time of Full Rise | 65 seconds | 65 seconds |
| Min. Bay Size | 15'x26' |
OPTIONAL ACCESSORY:
Bolt on alignment kit
S100129-S 158” service wheelbase.
S100130-L 178” service wheelbase.
S100131-EL2 215” service wheelbase.
